24-port Gigabit industrial managed PoE switch with 12GE (8PoE)+12GF(SFP)

FOB Reference Price:Get Latest Price
$270.00 - $523.00 / Piece | 1 Piece/Pieces The prices depend on order quantity .MOQ: 1piece (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ONV
Model Number:
ONV-IPS33248PFM
Function:
LACP, POE, QoS, SNMP, VLAN Support
Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Ports:
24
Switch Capacity:
52Gbps
Products Status:
Stock
Product Name:
24-port Gigabit industrial managed PoE switch
OEM/ODM:
Yes
PoE Ports:
8
Chip:
Super perfermance American military grade PoE switch
PoE pin out:
1/2(+), 3/6(-);Customized POE switch
Certificate:
CE, FCC, RoHS,, ISO, PoE switch
Feature 1:
12xRJ45 ports+12xSFP slots
Feature 2:
gigabit POE 8 port industrial poe switch
Feature 3:
Top performance industrial poe switch
Application:

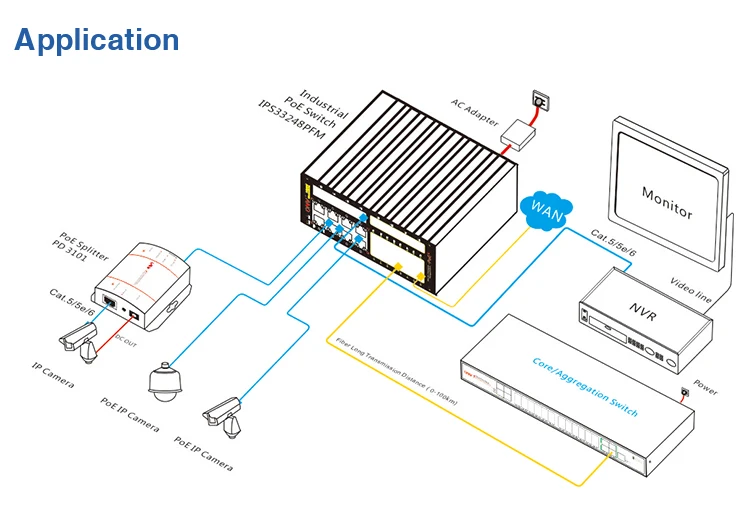

IP camera, IP phone, POE Ethernet switch
Certification:
CE SGS RoHS FCC
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs/carton
Port
Shenzhen
Lead Time :
3-7 working days or so

24-port Gigabit industrial managed PoE switch with 12GE (8PoE)+12GF(SFP)

Product Description

Product Description for 24-port Gigabit industrial managed PoE switch with 12GE (8PoE)+12GF(SFP)

Description12*10/100/1000M RJ45 Ports (PoE port: 1-8) + 12*Gigabit SFP Ports + 1*Console Port.
Model NameONV-IPS33248PFM
Capacity in Millions of Packets per Second (mpps) (64-byte packets)35.71
Switching Capacity in Gigabits per Second (Gbps)52
Spanning Tree Protocol (STP)Standard Spanning Tree 802.1d
Rapid Spanning Tree (RSTP) 802.1w

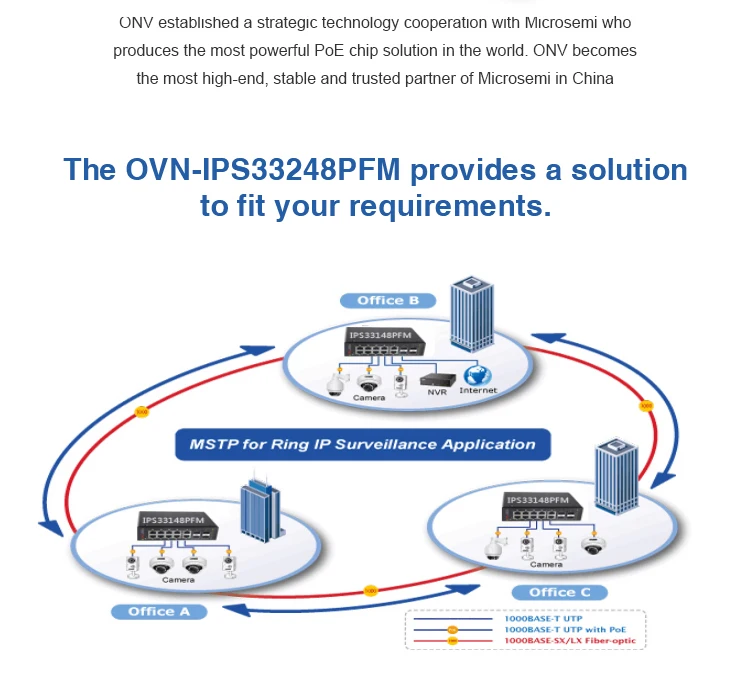

G.8032 ERPS <50ms ring protection for industrial high reliable application
AggregationLink Aggregation Control Protocol (LACP) IEEE 802.3ad
Up to 8 groups
Up to 16 ports per group
VLANSupport up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
Port-based VLAN
802.1Q tag-based VLAN
DHCP Snooping  (Layer 2)Prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection
IGMP v1/v2 snoopingIGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1024 multicast groups (source-specific multicasting is also supported)
Jumbo framesFrame sizes up to 9KB supported on Gigabit interfaces
MAC TableUp to 8K MAC addresses.
PortsTotal System Ports:24GbE
RJ-45 Ports:12GbE
SFP(100M/1G ):12
SFP+(1G/10G ):--
Dimensions165*148*68.5mm
Weight1.2KG
PowerDC 48~57V
CertificationCE, ROHS, FCC
Operating temperature-40 ~ 80 ℃
Storage temperature-40℃ ~ 85 ℃
Operating humidity10% to 90% , relative, non-condensing

IPS33064PF-4+2 (1).jpg

IPS33064PF-4+2 (2).jpg

IPS33064PF-4+2 (3).jpg

IPS33064PF-4+2 (4).jpg

IPS33064PF-4+2 (5).jpg

IPS33064PF-4+2 (6).jpg

IPS33064PF-4+2 (7).jpg

IPS33064PF-4+2 (8).jpg

IPS33064PF-4+2 (9).jpg
